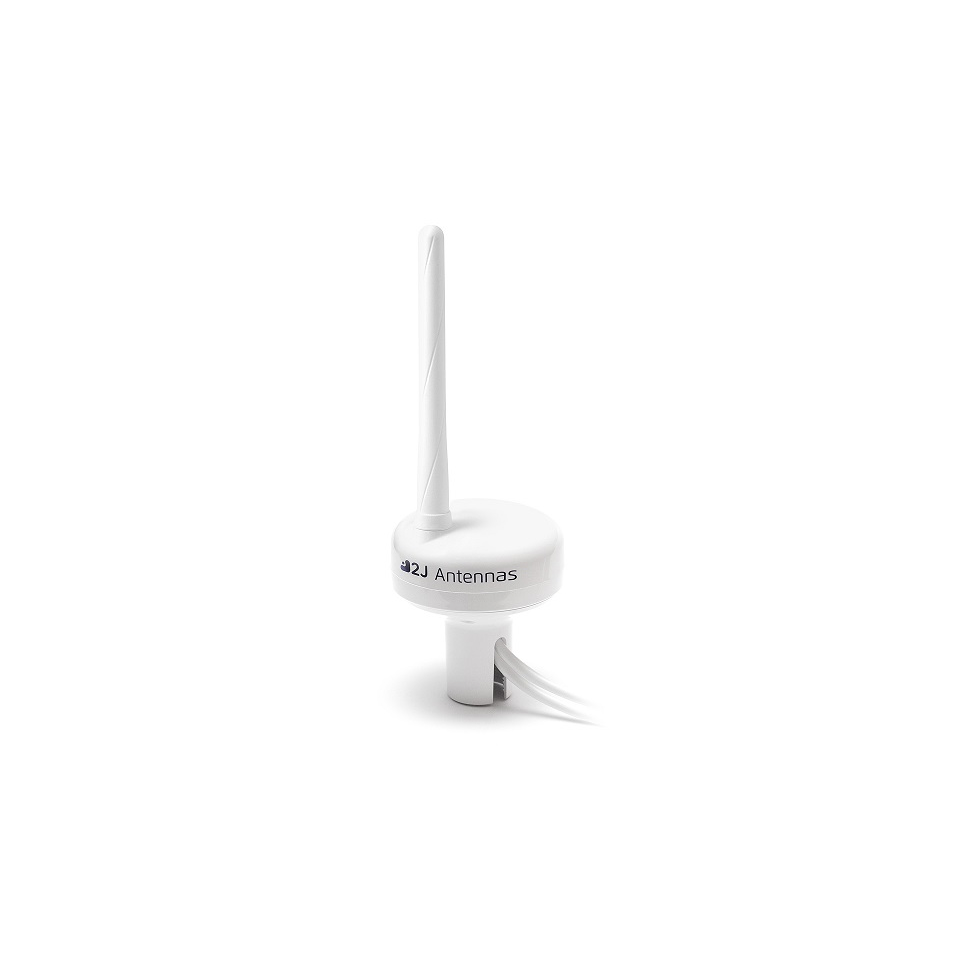

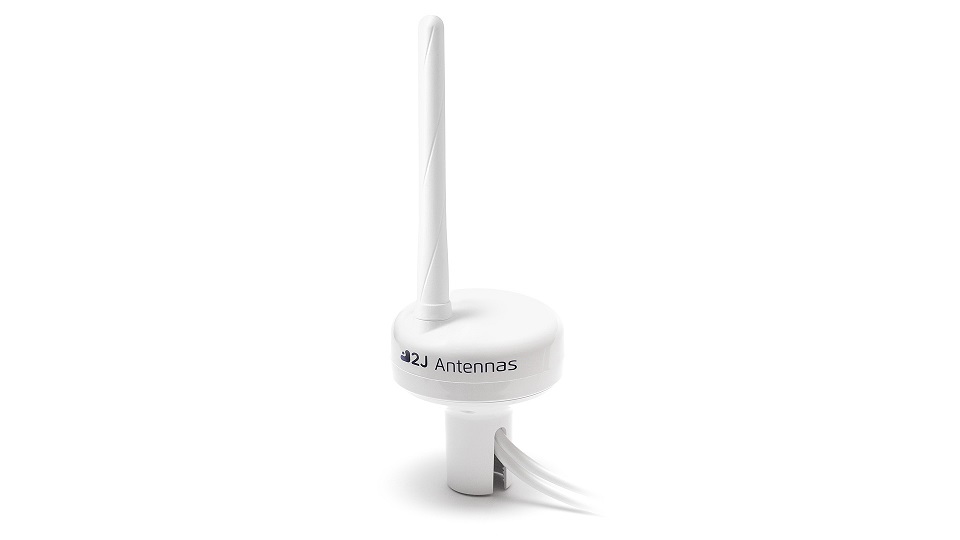

AIS, GPS/GLONASS/Galileo Configurable Mounting Marine Antenna

AIS, GPS/GLONASS/Galileo Configurable Mounting Marine Antenna

2J-ANTENNAS
Προβολές: 4431
Γράψε μια κριτική
€199.00
Ανευ Φ.Π.Α: €160.48
2J9637JBWGF
Άμεσα διαθέσιμο
+ −
ΤΗΛΕΦΩΝΙΚΗ ΠΑΡΑΓΓΕΛΙΑ

► 2-in-1 Combination Antenna
► AIS - Automatic Identification System Antenna
► Compact Marine antenna
► Ground Plane Independent
► Active GNSS Antenna
► 24 dB GNSS Active Gain
► Pre-Filter GNSS
► GNSS Voltage Range 2.7 - 5.5 V

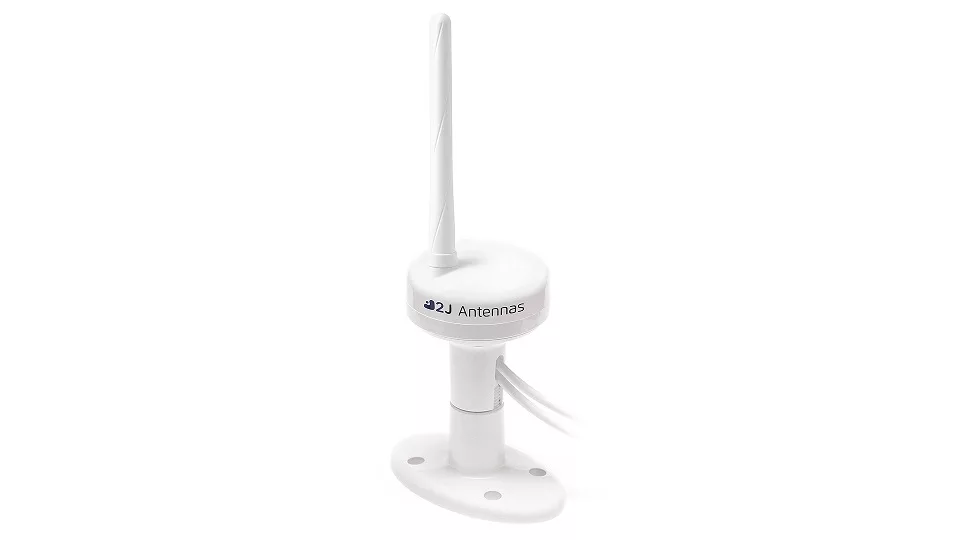

► Configurable Mount options
► Adhesive Mounting sticker included




CONNECTION 1 AIS/VHF
Standards AIS
Frequency (Mhz) 162
VSWR ~1.6:1
Impedance (Ohm) 50
Polarisation Linear
PMax. Input Power (W) 25

CONNECTION 2 GPS/GLONASS
Standards GPS/QZSS/Galileo/GLONASS
Impedance (Ohm) 50
Radiation Pattern Hemispherical
Polarisation RCHP
Active Gain (dB) 23 @ 3 V, 24 @ 5 V
Return Loss (dB) <-15
Saw Filter Type Pre-Filter
Voltage Range (V) 2.7 - 5.5
Noise Figure (dB) 1.2
Current Consumption (mA) 15 - 25
Power Consumption (mW) 40 - 137
