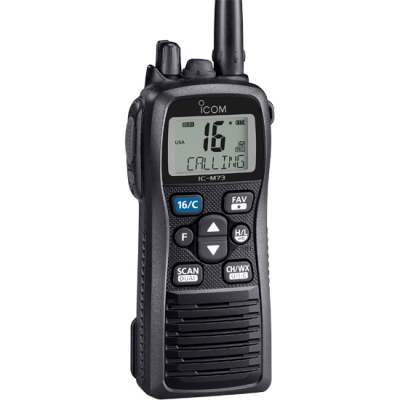

ICOM IC-M73EURO Plus Marine VHF φορητός πομποδέκτης με Active Noise Cancelling & Voice recording

ICOM
Προβολές: 5538
Γράψε μια κριτική
€339.00
Ανευ Φ.Π.Α: €273.39
IC-M73EURO Plus
Εκτος αποθέματος

Last Call Voice Recording

The last call voice recording function automatically saves the last incoming call for 1 minute. You can also start recording manually. You will not miss an important call.

Active Noise Cancelling Technology

The built-in bidirectional active noise cancelling reduces background noise to up to 90% and improves both your transmitted voice and incoming call. You will hear better and clearer!

Bass Boost Function

The signal processing technology emphasizes low-pitched sound to provide a rich bass sound for both transmit and receive signals.

700mW Loud Audio

The IC-M73EURO Plus uses a BTL (bridgetied load) amplifier that doubles the audio output. Its internal speaker delivers a loud 700mW audio output with clear sound.

6W RF Output Power

The IC-M73EURO Plus' 6 Watts*1 of transmit power will provide extended communication range for the user. A large capacity Lithium-Ion battery, BP-245H allows for 17 hours of operation, under normal conditions*2.

*1 1W for FRG version, 5W for AUS version.
*2 Typical operation with 5:5:90 duty ratio. 20 hours for basic version.

IPX8 Advanced Waterproofing

The IC-M73EURO Plus continues to offer Icom's best waterproof protection. The radio has been tested to survive after being submersed in 1.5m (4.9ft) depth of water for 30 minutes.

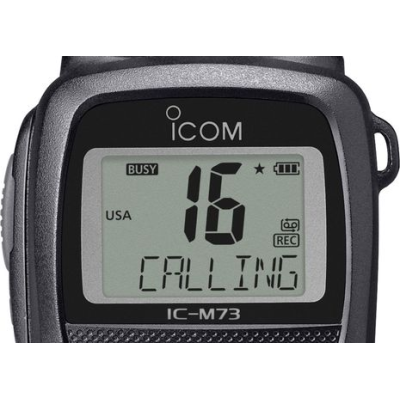

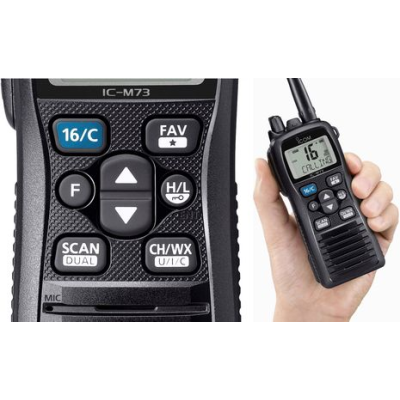

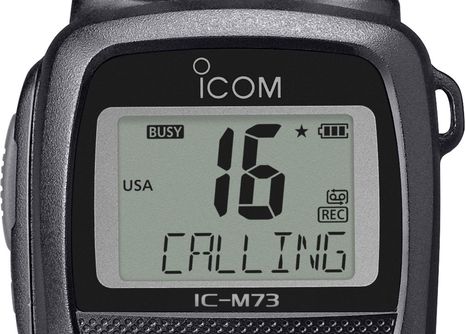

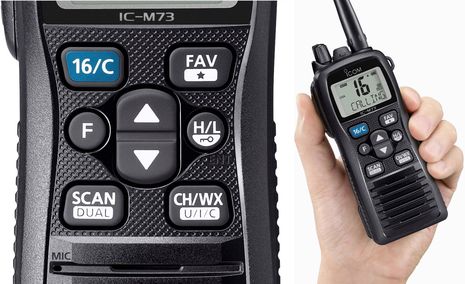

Slim, Hourglass Body Wide Viewing Angle LCD

The IC-M73EURO Plus has a stylish, ergonomic design. A durable and rugged body provides for user-friendly operation and long life. A wide viewing angle, high intensity LCD offers bright, easy to read characters.

Additional features

  • AquaQuake™ water draining function
  • Dual/Tri-Watch function for monitoring Channel 16 and/or call channel
  • 4 level battery indicator
  • Favorite channel and tag scan functions
  • Optional waterproof speaker-microphones, HM-167 and HM-202

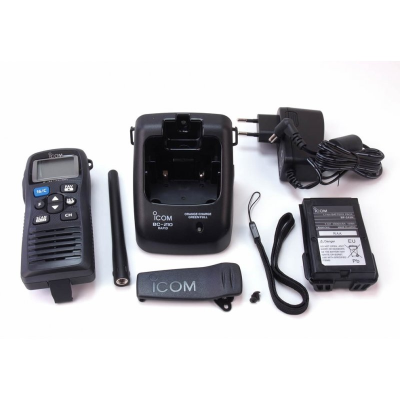

  • Rapid charger BC-210 supplied
  • Auto power save function
  • Basic version (no voice recorder, no noise canceller and no bass boost function) available for limited markets.



IC-M73EURO Plus

IC-M73EURO Plus
AUS version
Frequency range Tx 156.000–161.450MHz 156.025–157.425MHz
Rx 156.000–163.425MHz 156.300–162.025MHz
Dimensions (W×H×D)
(Projections not included)		 52.5×125×30 mm
Weight (approx.) 320g
(With BP-245H, FA-S64V, MB-103)
Current drain Tx 1.5A
(6W output)		 1.4A
(5W output)
Rx Max. audio
(Int SP/Ext SP)		 450mA/250mA
Sensitivity (at 20dB SINAD) −4dBμ emf typ. −5dBμ emf typ.
Intermodulation 68dB typ. 65dB
Audio output power
(at 10% distortion, 8Ω load)		 700mW typ. (Internal SP@1kHz)
200mW typ. (External SP)
Output power (Hi/Mid/Low) 6/3/1W
1/0.5W (FRG version)		 5/3/1W

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard MIL-810 G
Method, Proc.
Low Pressure Storage 500.5 I
Low Pressure Operation 500.5 II
High Temperature Storage 501.5 I
High Temperature Operation 501.5 II
Low Temperature Storage 502.5 I
Low Temperature Operation 502.5 II
Temperature Shock 503.5 I-C
Solar Radiation 505.5 I
Rain Blowing 506.5 I
Rain Drip 506.5 III
Humidity 507.5 II
Salt Fog 509.5
Dust Blowing 510.5 I
Water Immersion 512.5 I
Vibration 514.6 I
Shock Functional 516.6 I
Shock Transit Drop 516.6 IV

Also meets equicalent MIL-STD-810-C, -D, -E and -F.

Applicable IP Rating and environmental test.

Ingress Protection Standard
Water IPX8 (Waterproof protection)


All stated specifications are subject to change without notice or obligation
