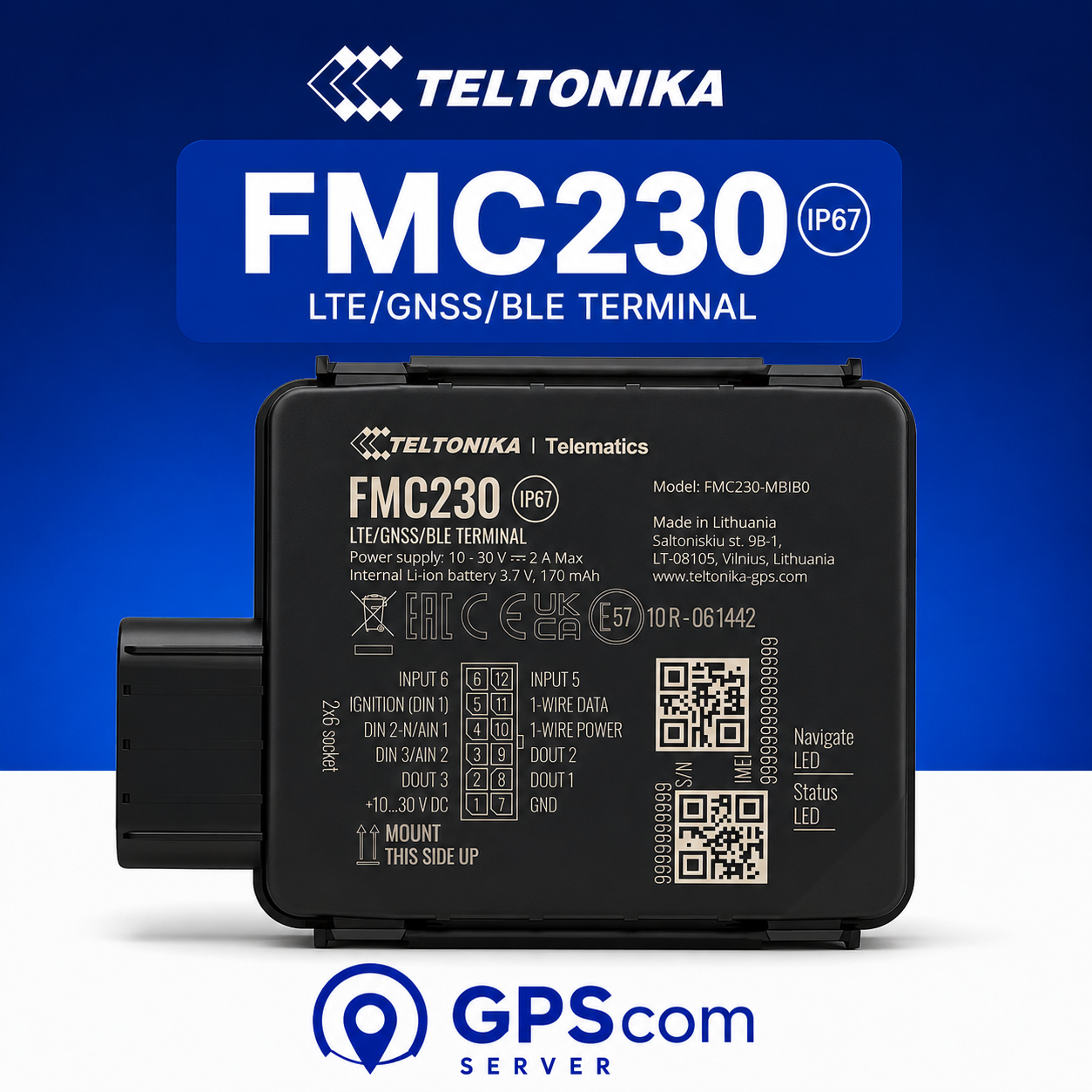

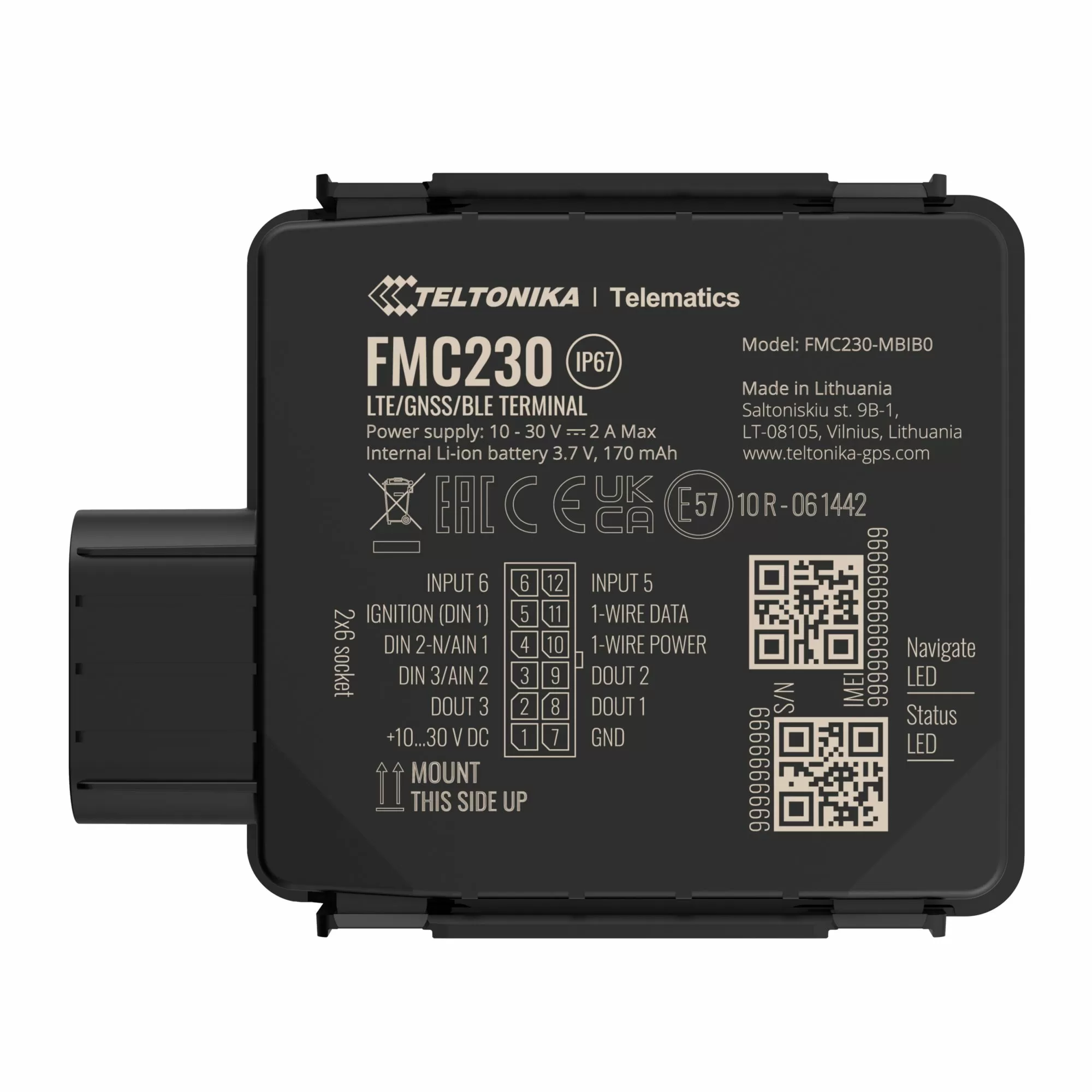

FMC230 IP67 4G GPS tracker με SIM κάρτα + 1 ΜΗΝΑ ΔΩΡΕΑΝ συνδρομή GPScom Server

MODULE

• Name: FMC230- MBIB0: MeiG SLM320-E with Teltonika TM2500 & FMC230- MCIB0: MeiG SLM320-LA with Teltonika TM2500
• Technology: LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH

GNSS

• GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
• Receiver: Tracking: 33
• Tracking sensitivity: -165 dBM
• Accuracy: < 2.5m CEP
• Velocity Accuracy: < 0.1 m/s (within +/- 15% error)
• Hot start: < 1 s
• Warm start: < 25 s
• Cold start: < 35 s
• Technology:LTE Cat 1, GSM
• 2G: FMC230-MBIB0: GSM: B2/B3/B5/B8 & FMC230-MCIB0: GSM: B2/B3/B5/B8
• 4G FMC230-MBIB0: LTE FDD: B1/B3/B7/B8/B20/B28 LTE-TDD:B38/B40/B41 & FMC230-MCIB0: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD:B40
• Data transfer LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
  LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL)
  GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
• Data support: SMS (text/data)

POWER

• Input voltage range: 10 - 30 V DC with overvoltage protection
• Internal Back-up battery:170 mAh Li-Ion, 3.7 V battery (0.63 Wh)
• Internal fuse3A, 125V

Power consumption:

• At 12V < 3 mA (Ultra Deep Sleep)
• At 12V < 5 mA (Deep Sleep)
• At 12V < 16 mA (Online Deep Sleep)
• At 12V < 18 mA (GPS Sleep)
• At 12V < 33 mA (nominal with no load)
• At 12V < 2A Max. (with full Load / Peak)

BLUETOOTH

• Specification: 4.0 + LE
• Supported peripherals: Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support

PHYSICAL SPECIFICATION

• Dimensions: 70,5 x 67,0 x 25,6 mm (L x W x H) 85,0 x 67,0 x 25,6 mm (L x W x H) (length with connector socket)

OPERATING ENVIRONMENT

• Operating temperature (without battery): -20 °C to +85 °C
• Storage temperature (without battery): -20 °C to +85 °C
• Operating temperature (with battery): -20 °C to +40 °C
• Storage temperature (with battery): -20 °C to +45 °C
• Operating humidity: 5% to 95% non-condensingIngress
• Protection Rating: IP67
• Battery charge temperature: 0 °C to +45 °C
• Battery discharge temperature: -20 °C to +60 °C
• Battery storage temperature-20 °C to +45 °C for 1 month & -20 °C to +35 °C for 6 months

INTERFACE

• Digital Inputs: 3
• Negative Inputs: 1 (Digital Input 2)
• Impulse Inputs: 2 (Digital Input 1, Digital Input 2)
• Digital Outputs: 3
• Analog Inputs: 2CAN
• Adapter inputs: 1
• 1-Wire: 1GNSS antenna
• Internal High Gain
• Cellular antenna
• Internal High Gain
• USB2.0 Micro-USB
• LED indication
• 2 status LED lights
• SIM: Micro-SIM + eSIM
• Memory: 128MB internal flash memory

FEATURES

• Sensors: Accelerometer
• Scenarios: Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip, Jamming
• Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• Configuration and firmware update: FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
• SMS: Configuration, Events, DOUT control, Debug
• GPRS: commands Configuration, DOUT control, Debug
• Time Synchronization: GNSS, NITZ, NTP

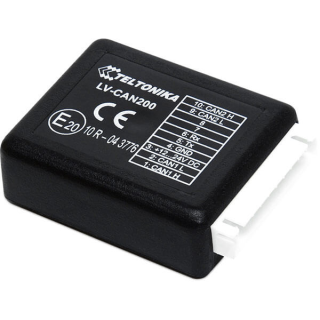

• Fuel monitoring: LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
• Ignition detection: Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)

CERTIFICATIONS & APPROVALS

Regulatory: CE-RED, E-mark, RCM, Anatel (in progress), TRA, CITC, Reach, RoHS
